Application

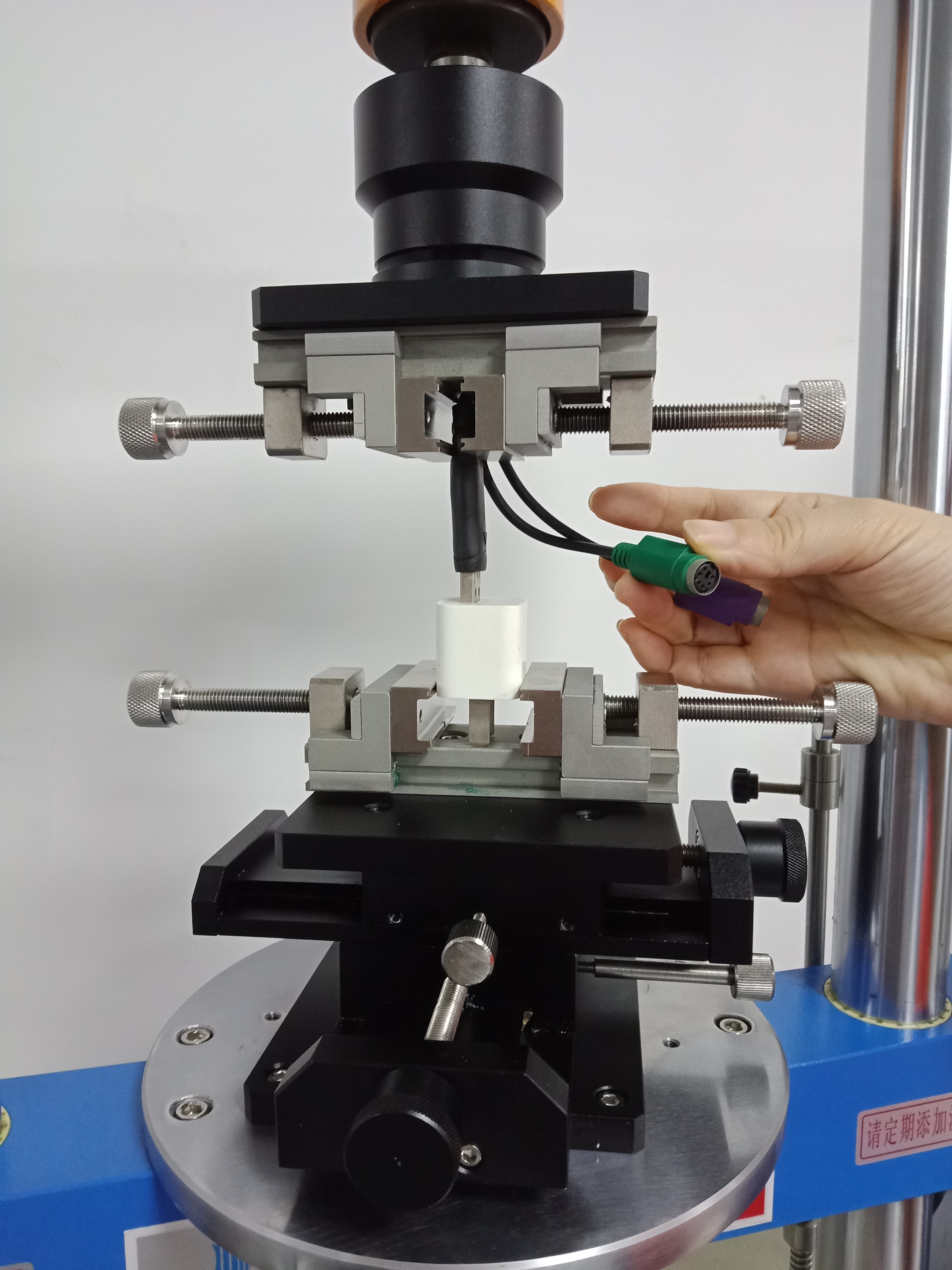

This machine used in various kinds of connectors for plug in and plug out force test, equip with automatic device for adjustment centre site and special grips so that it can get the precision insert force;
Adopt Chinese Windows version software frames setting which is easy for operation and can storage for test data's (test condition, insert stroke curve graph, lifetime curve, inspection report etc. ) Match with motional impedance test system, can do insertion test as well as motional impedance test and drawing together. (Load-stroke-impedance curve)

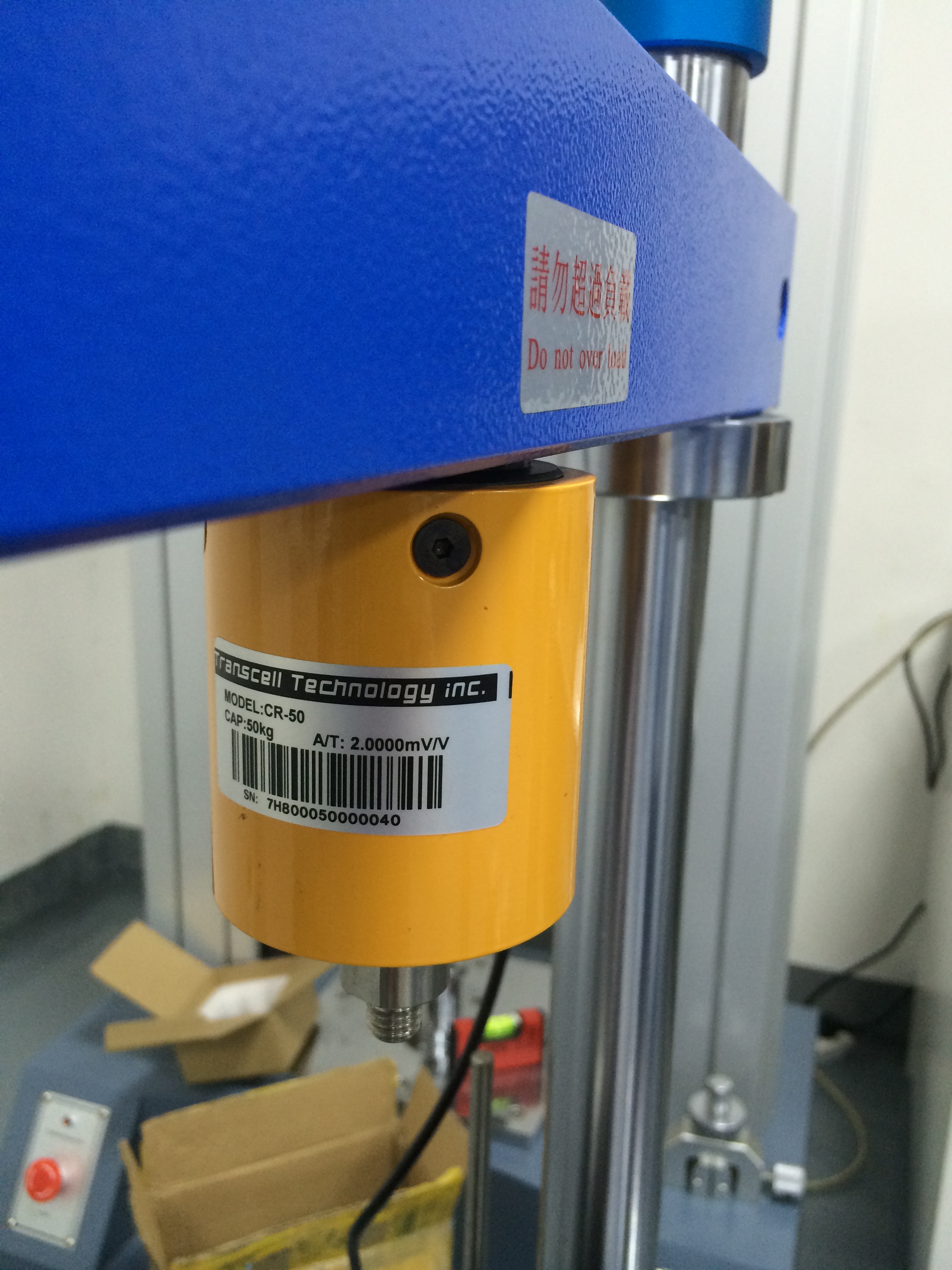

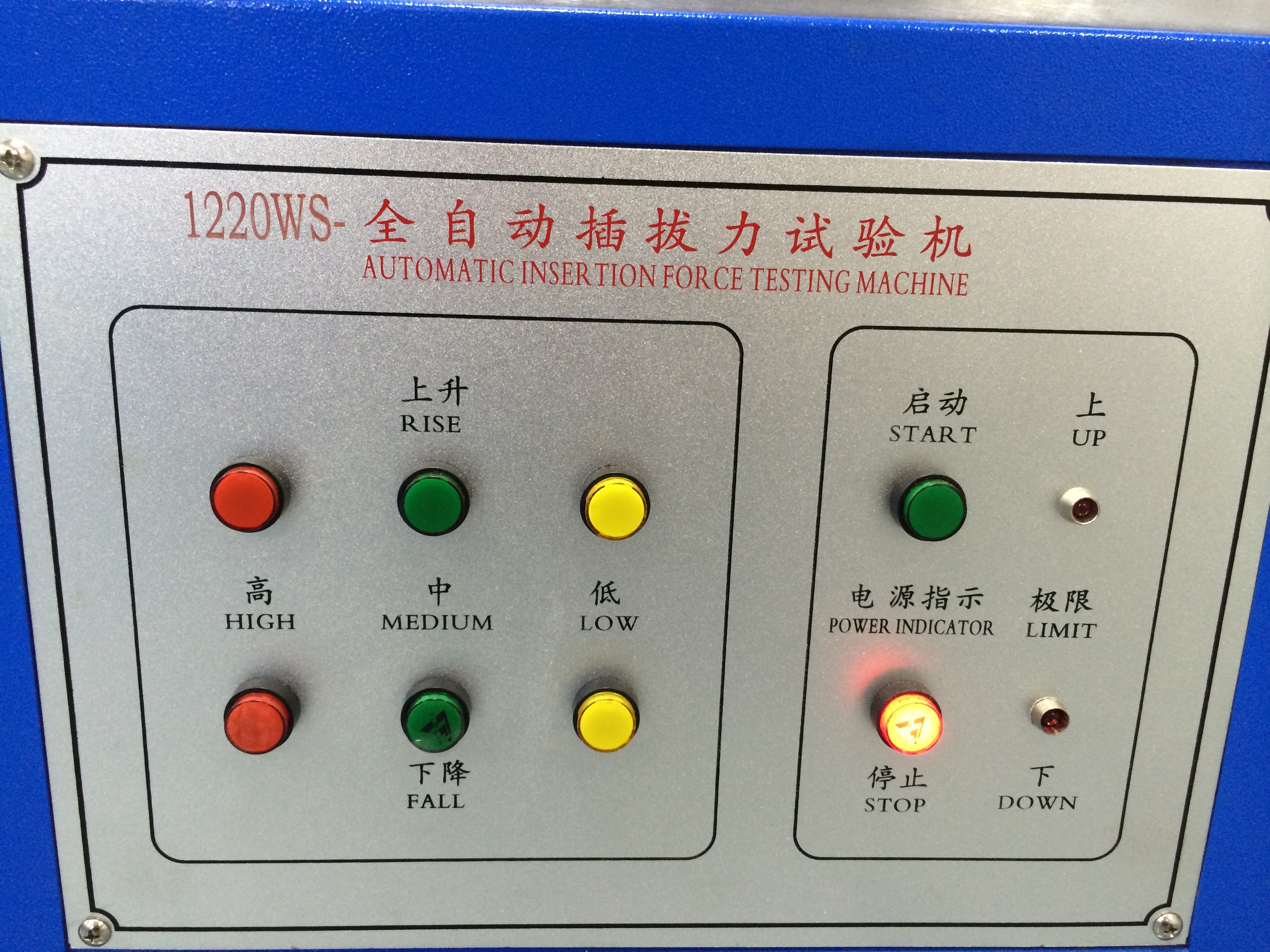

This machine adopt high precision loading parts with servo motor for measurement and drive, can get precision insertion force result.
It is a kind of necessary machine for all kinds of connectors and electrical products manufactures for research and development together with quality control application.
Test items
- Test hole plug connector.
- Test row of the connector plug
- Life test plug connector.
- Single-pin connector and plastic Retention Test
- Connector test
- Impedance measurements can be performed simultaneously (optional)
- Various compression, tensile breaking strength test
Additional features (optional):
1.Dynamic impedance Test System MODEL, 101R
2.The system for testing insertion force tension or pressure may also test the value of contact resistance, and the dynamic resistance curve, drawing on the (load -stroke curves)
3.High-speed test function 100 / sec, can obtain more accurate values of the impedance changes
4.Mobile phones and PDA can be used in testing the Battery Connector.
5.Pressure and stroke and the impedance curve.
6.Can be set to take power or travel itinerary to take impedance values multi-function.
7.Stroke can be set to take the maximum impedance region (multi-point function).
8.Do a single test and life test.
9.Can be drawn, the load - stroke - Impedance life curve
Specifications:
| Product Name | Socket Insertion Withdrawal Force Tester |
| Load capacity | 2kg, 5kg, 20kg, 50kg |
| Unit switch over | gf,kgf,lbf,N |
| Resolution | 0.001kg |
| Load precision | ±0.2% |
| Maximum travel | 150mm |
| Test speed | 0~200mm/min(0~600mm/min) |
| Speed precision | 0.5% |
| X,Y axis movement range | 0~75mm |
| Displacement resolution | 0.01mm |
| Dynamical System | Panasonic servo motor |
| Size | 360*260*940mm |
| Weight | 70kg |
| Power | 220V,50HZ / Customized |
