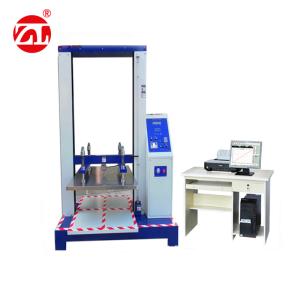

Computer Servo Single - screen Packaging Compression Strength Testing Machine

Computer Servo Packaging Testing Machine / Paper Carton Compression Strength Tester

\n\n

\n\n

\n\n

The Application:

\n\n

\n\n

\n\n

\n\n

Compressive Strength Tester used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

\n\n

\n\n

Features:

\n\n

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box,and it operates easily;
\n2. Using a single-screen operation; do not need to switch the screen;
\n3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
\n4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
\n5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
\n6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
\n7. With self-return & auto-correction function;
\n8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
\n9. With the user-defined Test methods; with experimental data analysis function;
\n10. It can do test of compression, bending, pressure holding & fatigue.
\n11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

\n\n

Specifications:

\n\n\n\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\t\n\t\t\t\n\t\t\t\n\t\t\n\t\n

Model	ZL-9001A
Capacity (optional)	1000KG,1000KG,1200KG
Unit (switchable)	Kg, Lb, N
Load Resolution	1/250,000
Load Accuracy	≤0.5%
Stroke (exclude the grips)	400 mm
Test Space (L×W×H)	1300×1500×1200mm
Speed of Compression	10 ± 3 mm/min
Operation Mode	PC
Report Items	\n\t\t\t Serial number, Peak value, Average value, Designated \n\n\t\t\t holding pressure value; all memorable \n\t\t\t
Structure	high-performance servo Motor (Japan) ; Imported ball screw rod
Dimension (L×W×H)	2000×1500×2030mm
Weight	Approx. 1340kg
Power	1ø, 220v/ 50Hz
Safety Devices	\n\t\t\t Overload protection, overvoltage protection & \n\n\t\t\t limited position protection device \n\t\t\t
Standard	TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

\n\n
Product Tags:

Computer Servo Compression Testing Machine



Single-screen Packaging Strength Tester



Packaging Testing Equipment with warranty

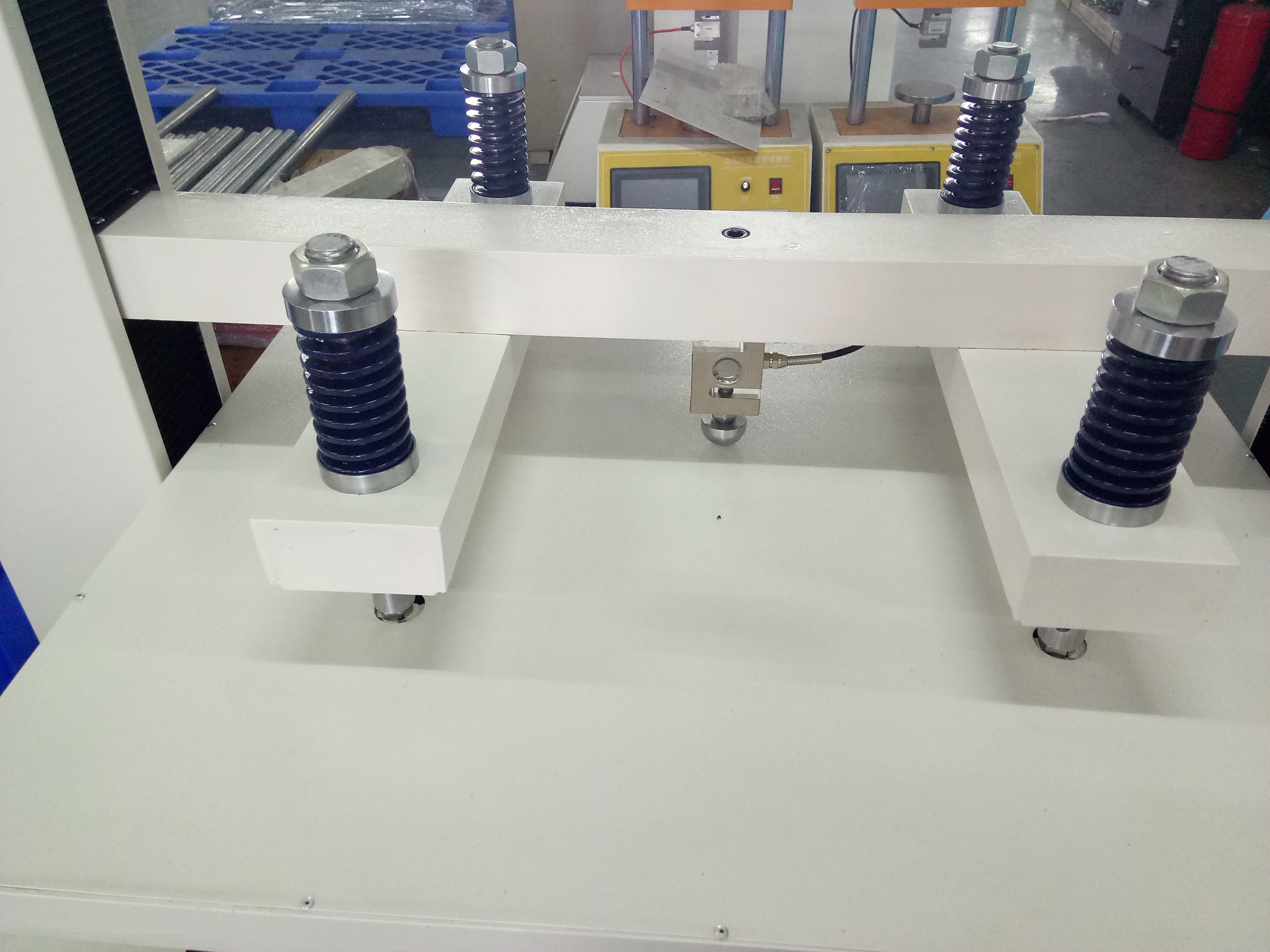

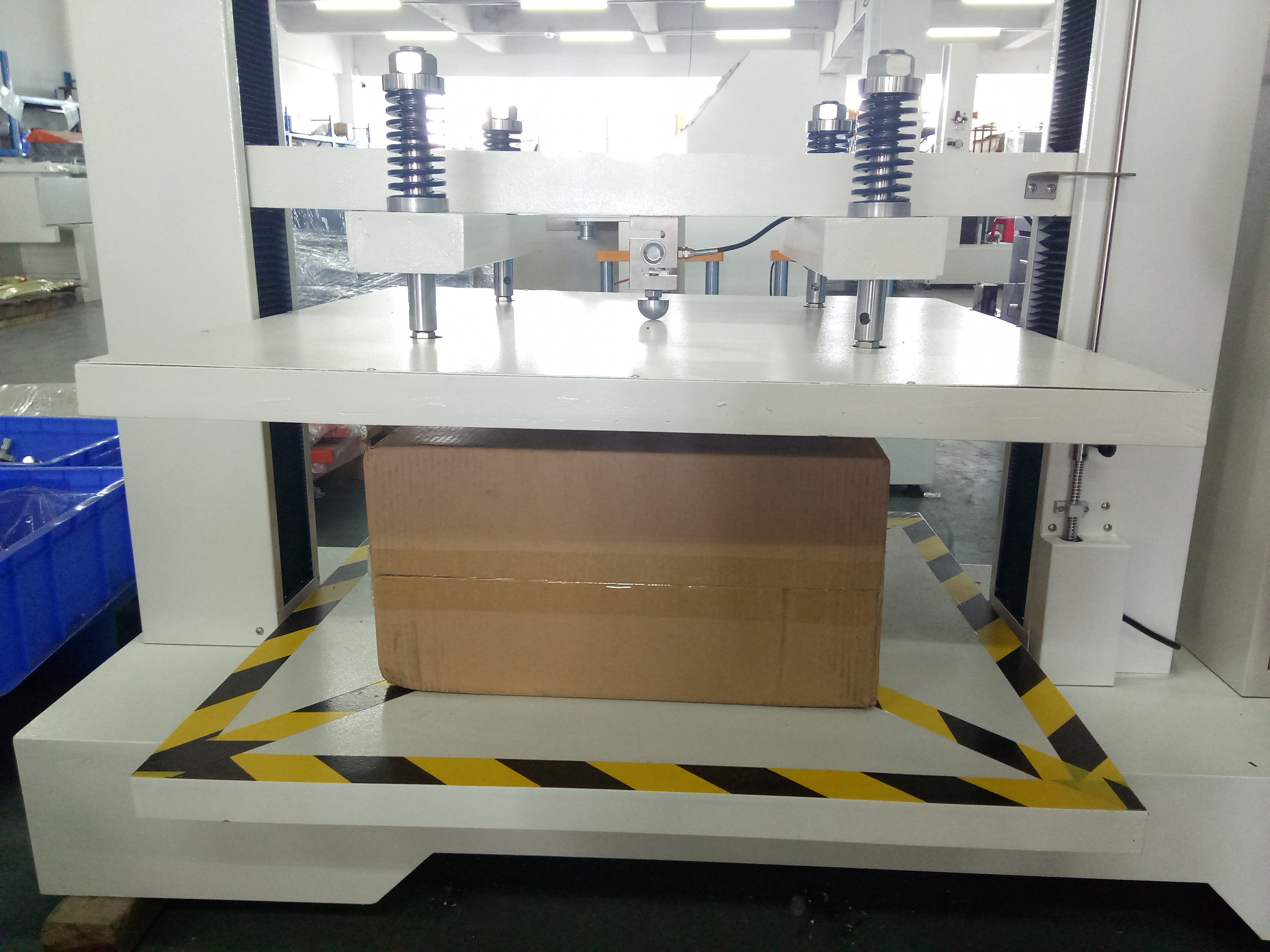

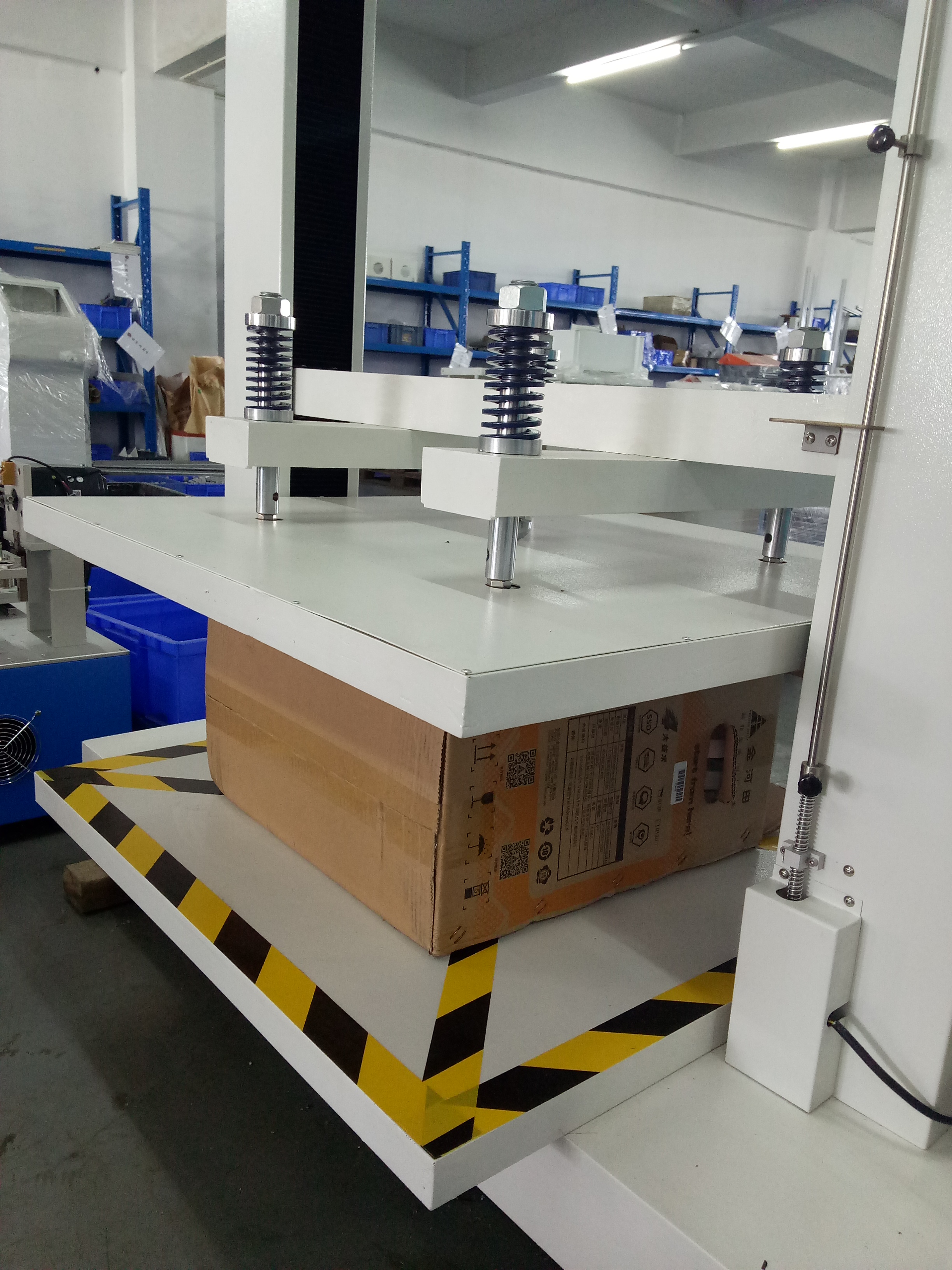

Computer Servo Single - screen Packaging Compression Strength Testing Machine Images
