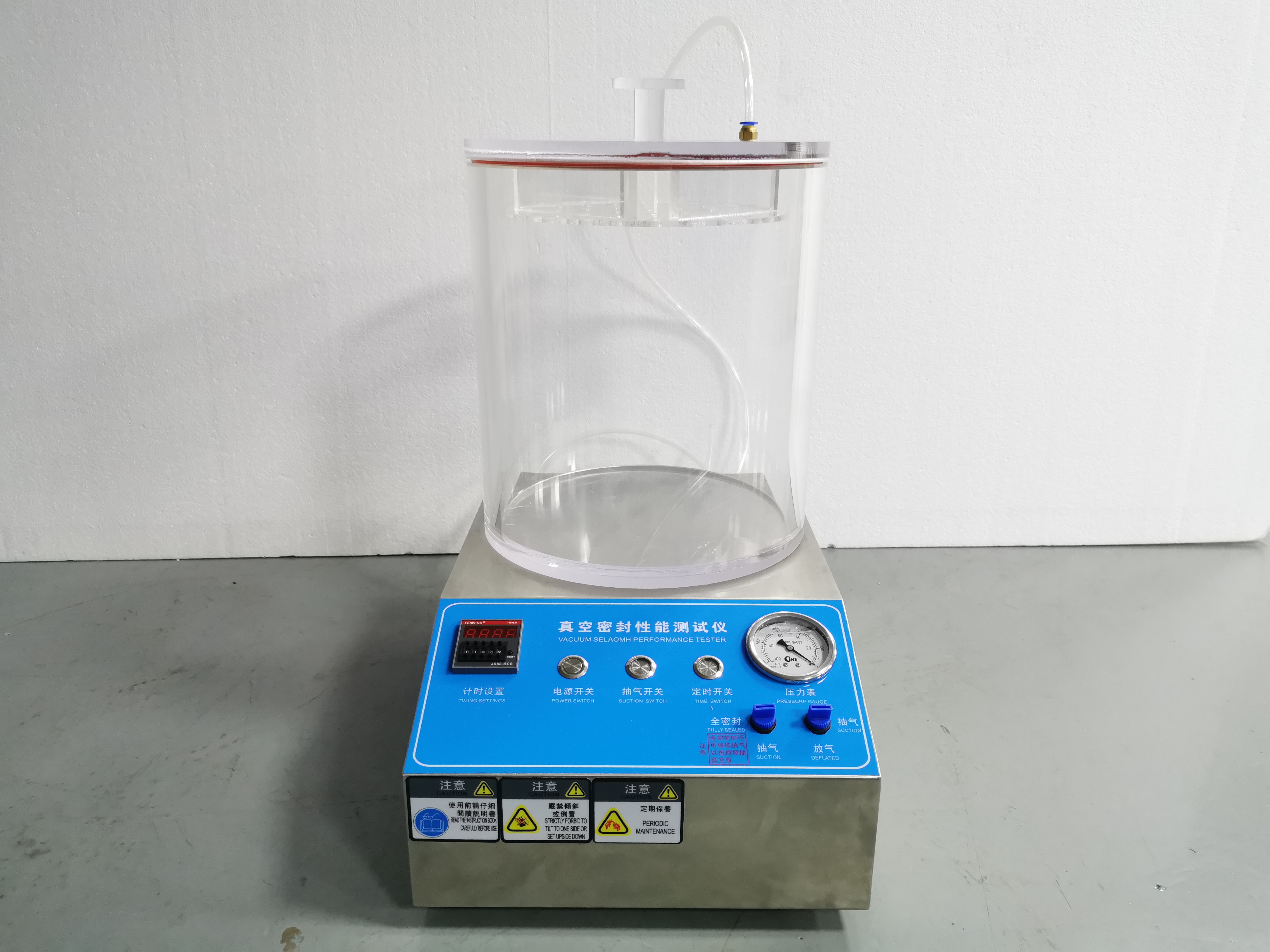

Microcomputer Control Digital Sealing Tester Automatic Cleaning Uninstall
Microcomputer Control Digital Sealing Tester, Automatic Cleaning Uninstall
Brief Introduction
Suitable for sealing tests of food, drugs, cosmetics, and industrial products such as flexible packaging, bottle packaging, and packaging materials. The MFY-05 features negative pressure test mode, automatic timing, automatic replenishment, and fully automated high-precision inspection drain devices. This equipment effectively tests and evaluates sealing processes and performance by comparing flexible parts, and is widely used in food, plastic flexible packaging, wet wipes, pharmaceutical, cosmetic, and other industries for tightness testing.
Features
- Microcomputer control with digital display of test vacuum degree
- Digital preset test vacuum degree and vacuum hold time, ensuring test data accuracy
- Uses high-quality system components for stable and reliable performance
- Automatic constant air pressure ensures testing under preset vacuum conditions
- Automatic constant pressure gas
- Automatic trial completion
- Automatic cleaning and uninstall
Test Principle
Through vacuum chamber evacuation, samples immersed in water generate external pressure. Observing gas escape from samples determines sealing properties. Alternatively, vacuum chamber evacuation creates internal and external pressure differences, causing sample expansion and shape recovery after vacuum release. Observing liquid infiltration determines sample sealing characteristics.
Technical Parameters
| Vacuum Degree |
0-90kPa |
| Air Pressure |
0.5Mpa - 0.7Mpa |
| Vacuum Hold Time |
0-60min |
| Vacuum Chamber Size |
Φ270mm×200 mm (H) |
| Host Size |
420mm(L)×320mm(B)×520mm(H) |
| Weight |
9kg |
| Power Supply |
220V 50HZ |
