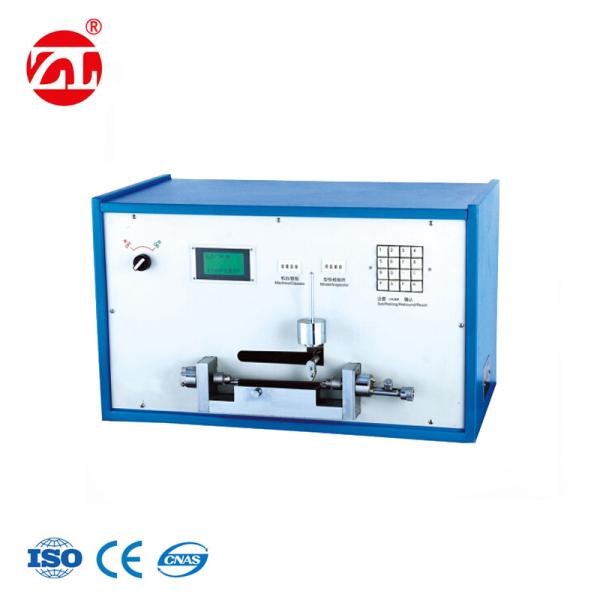

Automatic Calculate Unidirectional Scraping Tester With LCD Screen

Brand Name : ZL

Model Number : ZL-2717

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : Automatic Calculate XHUS400 Unidirectional Scraping Tester with LCD Screen is packaged within wooden case.

Product name : Automatic Calculate XHUS400 Unidirectional Scraping Tester with LCD Screen

Move Distance of Scrape Device : ＞100mm

Speed of Scraping Device : 400±40mm/min

Diameter of Scraper : 0.23±0.01mm

Short Circuit Current : 20±0.5mA

Sample Voltage : DC6.5±0.5V

Error of Scraping Force : ＜±5%

Consumed Power : ≤150W

Contact Now

Automatic Calculate XHUS400 Unidirectional Scraping Tester with LCD Screen

Product overview:

• Implementation standard: IEC60851-3

• It is applied to test scrape resistance of round enameled wire with diameter wider than 0.250mm.

• 32 bit RAM control system

• It calculates and displays scraping-force and average scraping-force automatically.

• Sample’s supporting table-board can ascend and descend parallel so that the whole table-board can contact closely with the sample.

• It adopts fine ball screw to drive the scraper ,which will not shiver when move..

• It adopts stainless precision drill chuck for wire..

• The LCD screen can indicate the testing steps and display the testing result.

• All the testing data and the sample characteristics value can be transfer to computer automatically, the MPS6 enameled wire quality data managerment system can save and analysis these data.

Parameters:

Move Distance of Scrape Device	＞100mm
Speed of Scraping Device	400±40mm/min
Diameter of Scraper	0.23±0.01mm
Sample Voltage	DC6.5±0.5V
Short Circuit Current	20±0.5mA
Error of Scraping Force	＜±5%
Input Power Supply	AC220V±10% 50Hz
Consumed Power	≤150W
Dimension	L×W×H 670×410×420mm
Weight	55Kg
