Liquid Crystal Display Manually Spring Tensile Compression Tester

Brand Name : ZL

Model Number : ZL-2105

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200 set per mongth

Delivery Time : 3-5 days

Packaging Details : Packaged within wooden case

Power : 220v 50hz

Maximum testing load : 500N

Minimum resolution : 0.01N

Diameter of the platen : 48mm

Indication error : ±1%

Warranty : 12 month

Working temperature : 20±10℃

Relative Humidity : 15%~80%RH

Contact Now

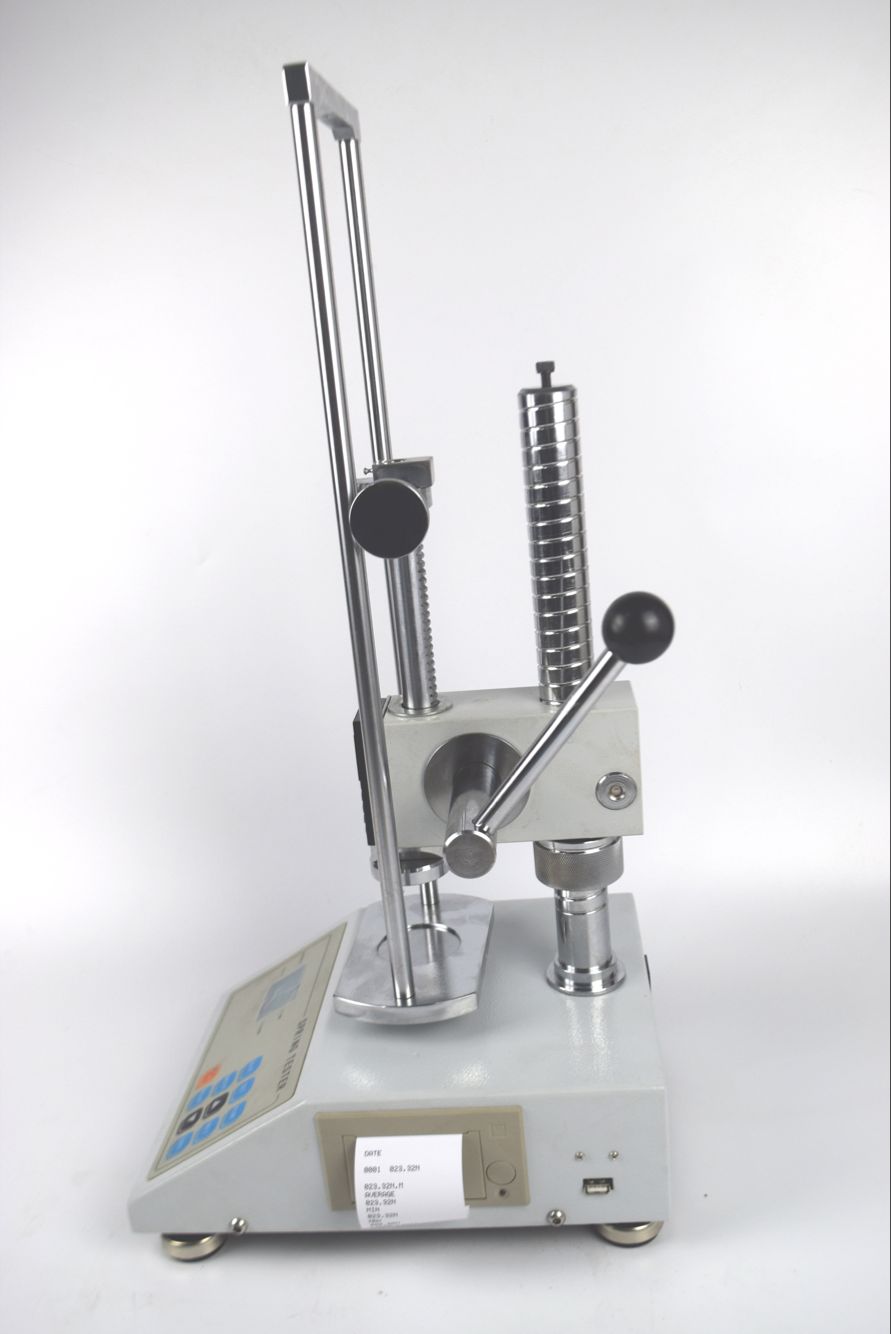

Liquid Crystal Display Manually Spring Tensile Compression Tester

Product Overview

TLS-S-I high precision liquid crystal display spring tension and compression testing machine is manufactured according to the JB/T 7796-1995 spring tension and compression testing machine standard. This equipment is primarily designed for tensile and compression testing of various spiral springs, as well as piston ring tension elastic testing.

The machine can determine the test force of springs under specific displacement conditions, or measure spring deformation under specific test forces. It can also be used for testing other elastic elements and small mechanical properties. Primarily used by spring manufacturers, low voltage electrical appliance factories, power machinery factories, universities, and research institutions.

Product Categories

Spring testing machines are categorized into manual and electric types (including automatic spring testers and microcomputer-controlled spring testing machines) based on spring sizes and pressure requirements
Further classified into liquid crystal digital display type and computer control type spring testing machines based on different detection requirements
Custom spring detection equipment available for specialized customer requirements

Technical Specifications

Parameter	Specification
Maximum testing load	500N
Minimum resolution	0.01N
Diameter of the platen	48mm
Maximum free length of measurable spring	150mm
Length of travel of the displacement scale	90mm
Division value of the displacement scale	0.01mm
Indication error	±1%
Power Supply	AC 110-220V, 50HZ-60HZ
Power capability (without printer)	13W
Power capability (with printer)	20W
Working temperature	20±10℃
Temperature of storage and transportation	-27℃~+70℃
Relative humidity	15%~80%RH

Liquid Crystal Display Manually Spring Tensile Compression Tester
