Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine

Brand Name : ZL

Model Number : ZL-1009

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 set per monfth

Delivery Time : 3-7 days

Packaging Details : Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine is packaged within safety wooden case.

Power : 220v 50hz

Diameter range : 0.08 ~ 0.8mm

Drawing speed : 250 ~ 300mm/min

Starting Length : 250mm

Extended range : 0 ~ 48%

Display Accuracy : 0.1%

Contact Now

Wire And Cable Testing Machine, Aluminum / Copper Elongation Testing Machine

Cable and Wire Elongation Testing Machine

Cable and Wire Elongation Test Machines are designed for measuring elongation in aluminum, copper, iron, and other metal materials. These testers utilize advanced software programs and sophisticated electronic sensing technology to accurately measure the elongation of tensile specimens. The system automatically converts measurements into percentage values displayed on an LED screen.

With integrated conductive wire technology and advanced control systems, this equipment automatically calculates high-precision percentage values. The system offers fully automatic operation with simple controls, easy-to-read displays, and accurate measurement results.

Key Features

Advanced control technology for automatic high-precision percentage calculations
Fully automatic operation with simple user interface
Easy-to-read displays with accurate measurement values
Ideal choice for wire-like material elongation testing
Sophisticated electronic sensing technology

Technical Specifications

Parameter	Specification
Product Name	Cable And Wire Elongation Test Machine
Diameter Range	0.08 ~ 0.8mm
Drawing Speed	250 ~ 300mm/min
Starting Length	250mm
Extended Range	0 ~ 48%
Display Accuracy	0.1%
Input Power	AC220V 50/60HZ
Dimensions	500 × 210 × 240 (mm)
Weight	13kg

Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine

Product Tags:

cable testing device

cable flex tester

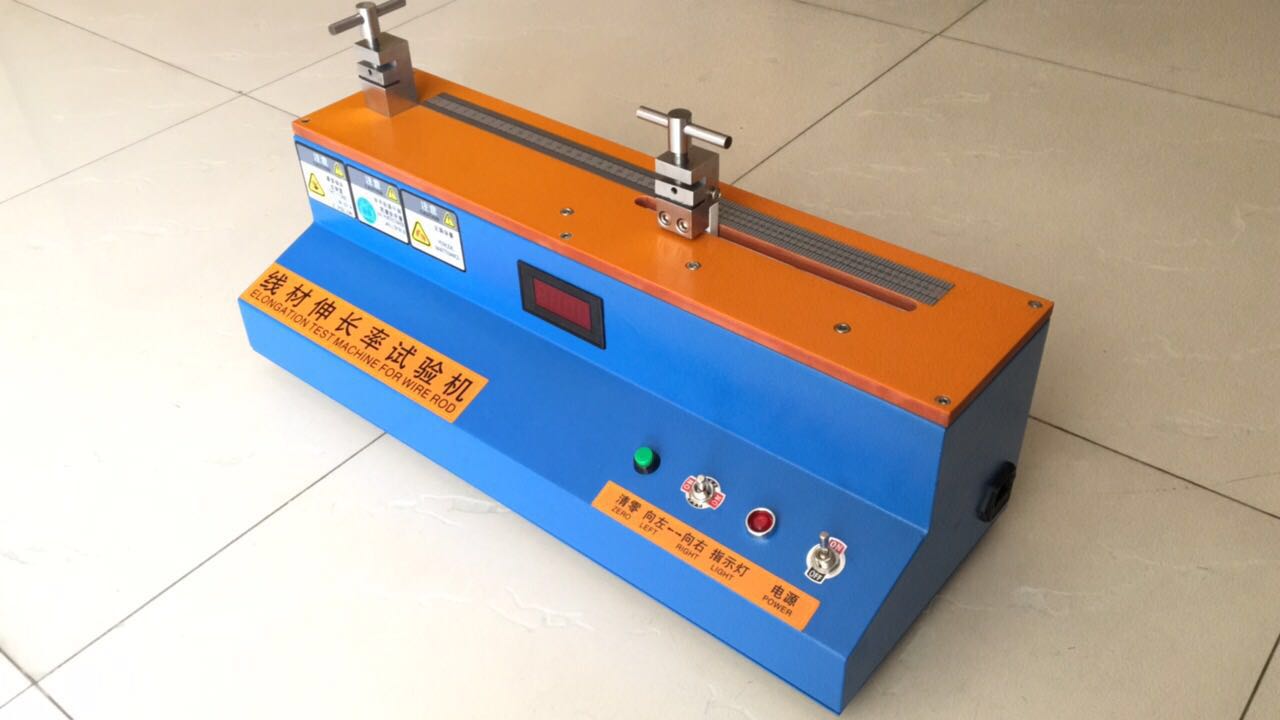

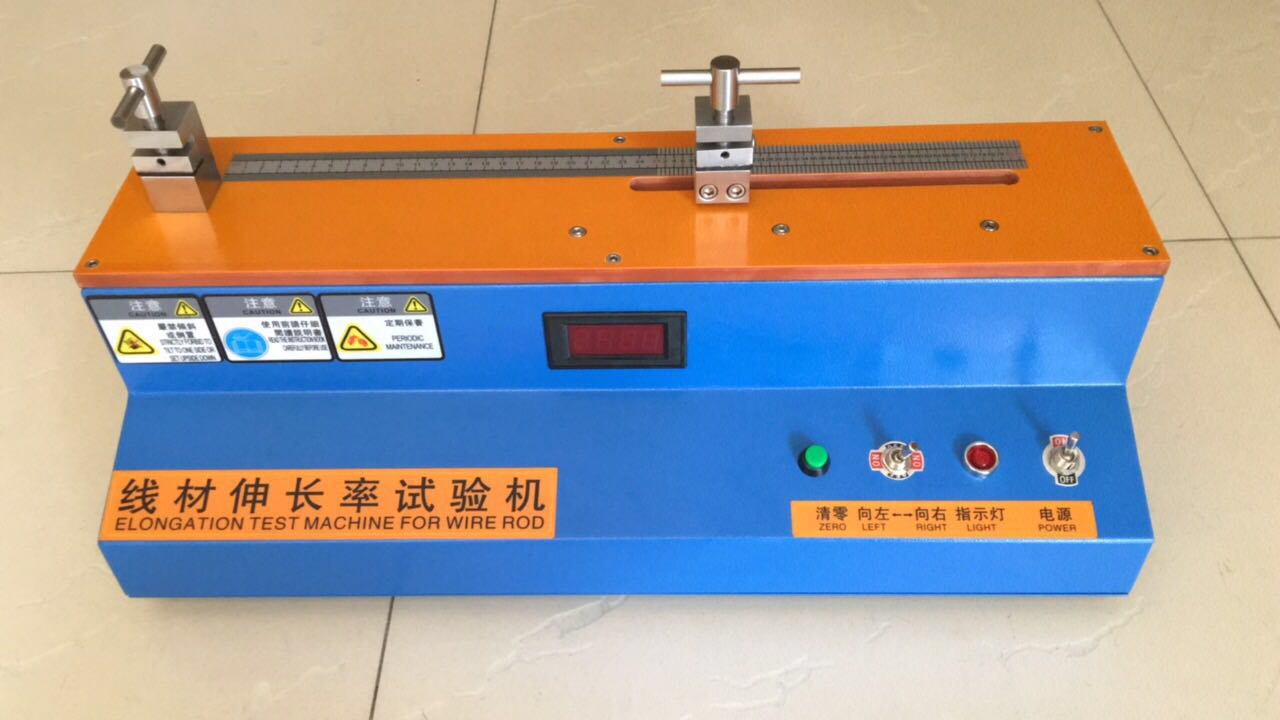

Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine Images
