PLC Control Automatic Vacuum Immersion Machine Double Cylinder

Power : 1HP

Material : Sheet metal + plating

Color : White or Customize

Ositive pressure in cylinder : 0.6MPa (6.12KG/CM)

Negative pressure in cylinder : 1.02×10MPa

Single Cylinder Inner dimension : L700 * W530 * H200mm

Warranty : 12 month

External dimensions : L1500 * W900 * H1100mm

Brand Name : ZL

Model Number : ZL-1034B

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Delivery Time : 7-10 days

Packaging Details : PLC Control Automatic Vacuum Immersion Machine Double Cylinder is Packaged within wooden case

Contact Now

PLC Control Automatic Vacuum Immersion Machine Double Cylinder

Product Overview

This advanced PLC-controlled automatic vacuum immersion machine features a double cylinder design with precision sealing and automated operation for efficient industrial processing.

Key Features

12mm imported silicone seal system for superior sealing performance
Fully automated operation: automatic lid opening, gas charging/discharging, and liquid level adjustment
PLC + touch screen control system effectively prevents pin dip paint and reduces secondary solder
Human-machine interface (Weilun color 7 inch) touch screen with Mitsubishi PLC control
Programmable parameters with storage for 0-50 different data sets
Adjustable dipping time (0-999 seconds) with alarm time, second vacuum, automatic air intake, and automatic lid opening functions
Stepper motor-controlled liquid level adjustment with height (0.1-60mm) and speed control
XD-020-380V vacuum pump for rapid vacuum with time-controlled settings
High-quality construction with 6mm GB steel vacuum box and international quality steel welded vacuum cover

Technical Specifications

Parameter	Specification
Power Supply	AC220V / 380V 50Hz / 60Hz
Power	1HP
Positive Pressure in Cylinder	0.6MPa (6.12KG/CM)
Negative Pressure in Cylinder	1.02×10MPa
Inner Dimension	L700 × W530 × H200mm
External Dimensions	L1500 × W900 × H1100mm
Weight	Approximately 220Kg

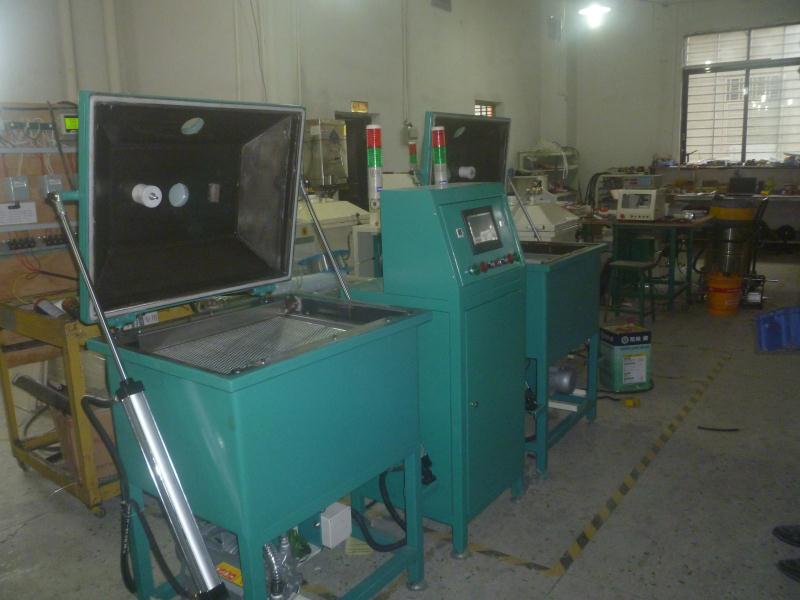

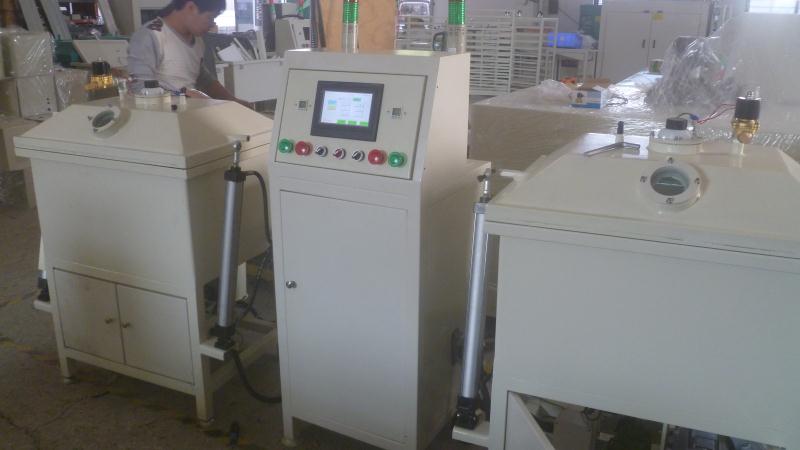

Product Images

PLC Control Automatic Vacuum Immersion Machine Double Cylinder

Additional Capabilities

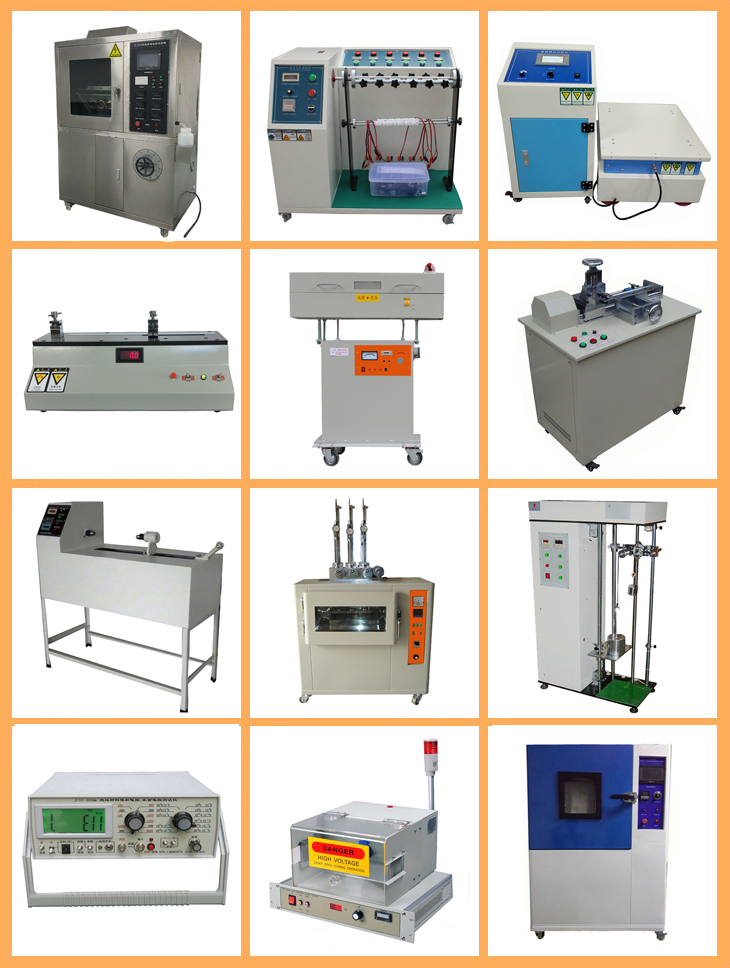

We can produce all wire testing machines to meet your specific industrial requirements.
