Brand Name : ZL

Model Number : ZL-3028

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 set per month

Delivery Time : 7-10 days

Packaging Details : Packaged in wooden case （fumigation free）

Power : 220v 50hz

Timing accuracy : 1 s

Testing room area : 0.75m3

Titled : 20°45°, 90°

Warranty : 1 Year

Standard : UL 94

Contact Now

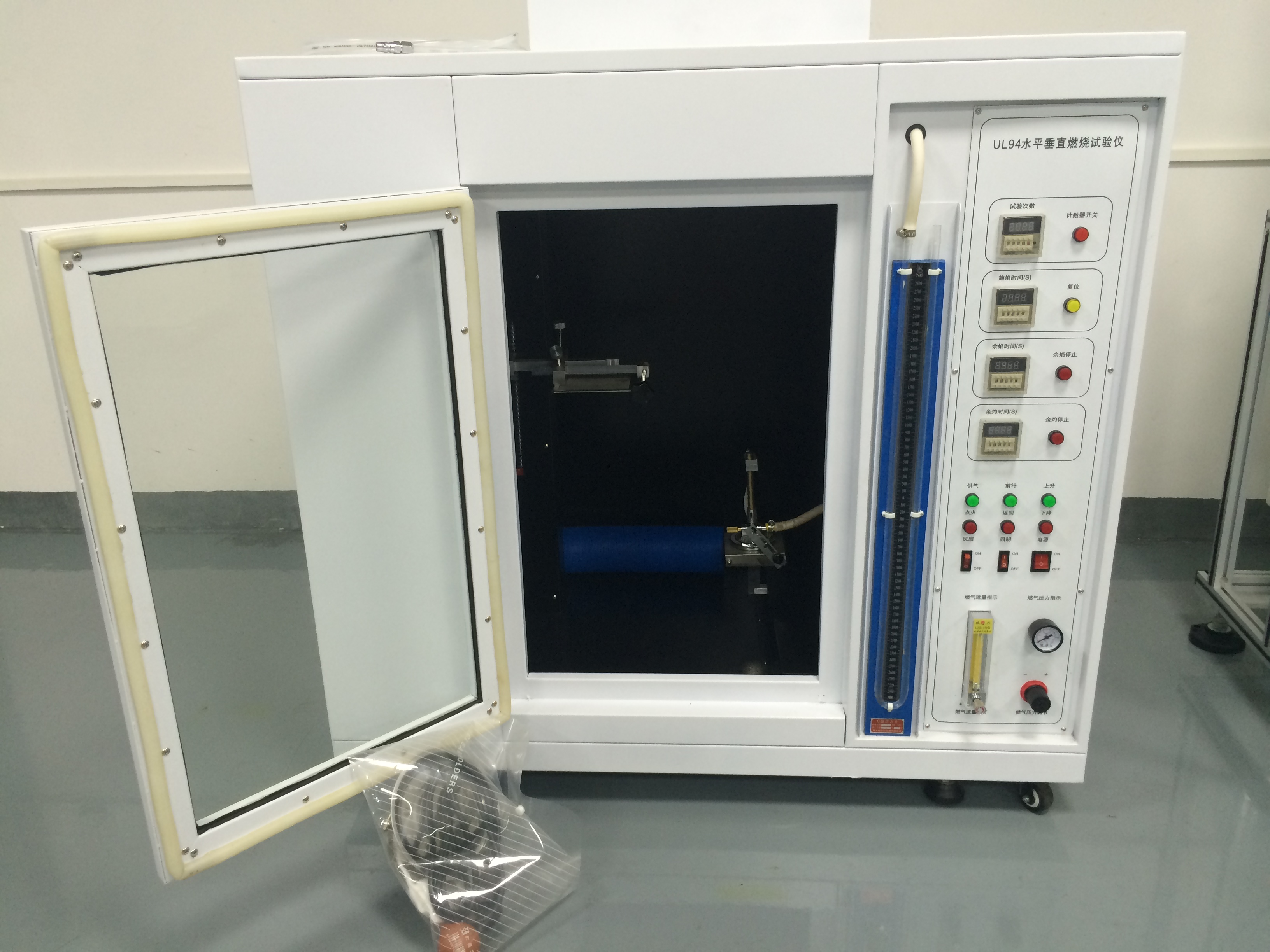

UL 94 / EN 60695-2-11 Vertical rubber cable Burn Horizontal Testing Machine

Equipment description:

Horizontal Vertical Burn In Test Machine is applicable to solid materials and the apparent density measured

according to GB6343 not less than 250kg/m2 of foam when placed in the horizontal and vertical with a

small flame ignition source ignited combustion after the test. The machine has the use of safe, reliable, easy

to operate, and so on.

To meet the standard:

Horizontal Vertical Burn In Test Machine according to national standards GB/T2408-1996 "Test method

for flammability of plastic - horizontal and vertical Law," flame-retardant material designed to test equipment.

Meet UL 94 and EN 60695-2-11

Technical parameter:

Product Name	Horizontal Vertical Burn In Test Machine
Testing room area	0.75m3
Timing accuracy	1s
Simple size requirements	Length:125±5mm,Thickness:3.0±0.2mm Width:3.0±0.2mm
Specification	Tube length100±10mm,Diameter:9.5±0.5 mm
Titled	20°45°, 90°
Height of burner blue flame	20 mm(Adjustable)
Time account	0~9999 times
Timer	0~99.99s
burner when necessary to manually lift in the vertical direction
Main configuration as follows
Host box(vertical burning ,burning one level)
Burning in part by the Bunsen burner, solenoid valve, high pressure ignition, gas pipes, regulators etc.
inner control box by the fire-breathing, Minting timer, counter etc. burning
