Temperature and Humidity Vibration Three Comprehensive Testing Chamber
Introduction:
Vibration Testing is performed to determine if a product can withstand the rigors of its intended use. ZL is a professional manufacturer for high-performance vibration shaker including electrodynamic shakers and repetitive shock vibration tables.
We can customize vibration test system to meet your specific needs. Choose from a number of custom options for your electrodynamic vibration shaker.
Specification Model List:
Temperature and humidity range: (Details are subject to temperature and humidity control chart)
G:-20～150℃ ；45%～98%
Z:-40～150℃ ；45%～98%
D:-70～150℃ ；45%～98%
2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH
3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH
4. Test machine size: (can be customized)
| Inner Box Size(W×H×D) | Carton Size(W×H×D) |
| 40×50×40cm | 98×143×93cm |
| 50×60×40cm | 153×108×93cm |
| 50×60×50cm | 107×147×111cm |
| 50×75×60cm | 107×162×121cm |
| 60×85×60cm | 110×178×108cm |
| 60×85×80cm | 117×172×141cm |
| 100×100×80cm | 157×187×141cm |
| 100×96×100cm | 193×158×149cm |
| 100×100×100cm | 193×158×153cm |
Electromagnetic vibration table specifications:
| Large exciting force (N) | Frequency range (Hz) | Large displacement (mm) | Large Attachment (KG) | Working table straight (mm) |
| 980 | 5～4500 | 25 | 70 | 150 |
| 1500 | 5～4500 | 25 | 70 | 150 |
| 2000 | 2～3000 | 40 | 140 | 230 |
| 3000 | 5～4000 | 25 | 120 | 150 |
| 3000 | 3～3000 | 40 | 140 | 230 |
| 6000 | 5～3000 | 25 | 200 | 200 |
| 6000 | 2～2000 | 51 | 300 | 230 |
| 10000 | 5～3000 | 51 | 150 | 240 |
| 20000 | 5～3000 | 51 | 300 | 320 |
Temperature and humidity vibration comprehensive test box (vertical + horizontal)
constitute:
The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, etc.
|
|

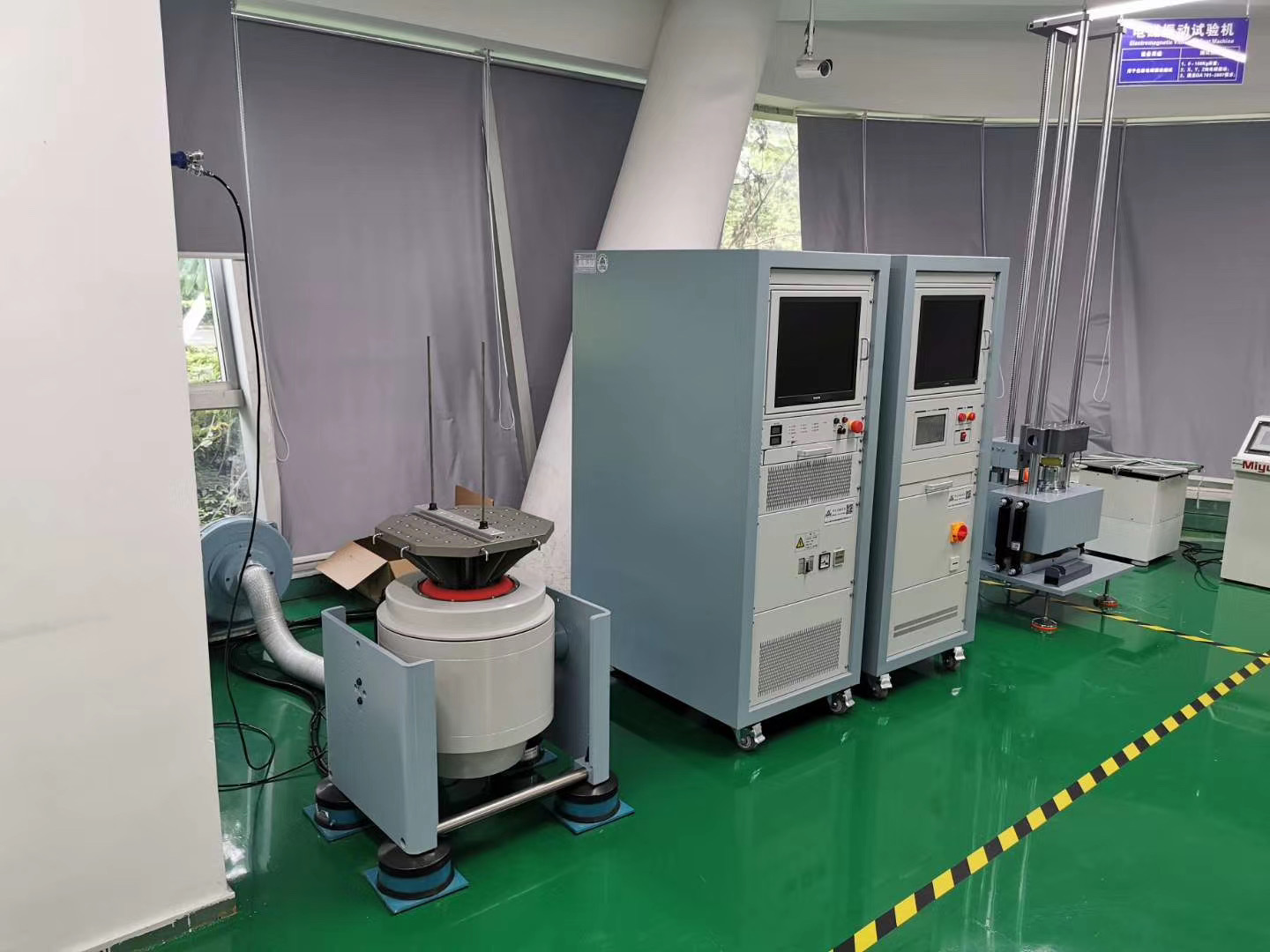

UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System Images
|
