Programmable Environmental High and Low Temperature Humidity Climatic Test Chamber

Brand Name : ZL

Model Number : ZL-6004

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 Sets

Delivery Time : 5-8 work days

Packaging Details : Programmable Environmental High and Low Temperature Humidity Climatic Test Chamber is packaged within wooden case.

Product name : Programmable Environmental High and Low Temperature Humidity Climatic Test Chamber

Temperature range : -70℃~+100℃(150℃)

Humidity range : 20%~98%R.H

Accuracy/ uniformly : ±0.1℃；±0.1%R.H./ ±1.0℃；±3.0%R.H.

Warranty : 12 Months

Temperature Limit : The highest temperature +150℃; the lowest temperature -60℃

Protection Class : ip67

Voltage : 220V, 380V, 240V, 110V

Contact Now

Programmable Environmental High and Low Temperature Humidity Climatic Test Chamber​

This testing chamber provides a simulated environment of high temperature, low temperature, high humidity, and low humidity to detect the material and the strong attenuation degree of rubber, plastic, electronic products, etc. before and after the test. This machine can also simulate the container environment to detect the fading and shrinkage of rubber and plastic under high temperature and humidity. Test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. It is suitable for quality control inspection of factories in industries such as electronics, electrical appliances, batteries, universities, research institutes, inspection and quarantine bureaus, paper products, food, vehicles, auto parts, metals, chemistry, building materials and other industries.

Detailed Parameters:

Model

ZL-80

(A~G)

ZL-150

(A~G)

ZL-225

(A~G)

ZL-408

(A~G)

ZL-608

(A~G)

ZL -800

(A~G)

ZL-1000

(A~G)
Inside Size W*H*D(cm) 40x50x40 50x60x50 50x75x60 60x85x80 80x95x80 100x100x80 100x100x100
Outside Size W*H*D(cm) 100x170x87 105x175x97 115x190x97 135x195x115 145x185x137 145x210x130 147x210x140
Temperature Range

-70℃~+100℃(150℃)

(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity Range 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)

Programmable Environmental High and Low Temperature Humidity Climatic Test Chamber

Technical Parameter:

Inner Box Size and Outer Box Size

Inner box size: (width * height * depth) 400mm*500mm*400mm

Outer box size: (width * height * depth) 900×1400×1000 mm
Inner Box Volume 80L(The dimensions refer to the size table above and can be customized)
Temperature Range -60℃ ~ +150℃
Humidity Range 20～98% R•H can adjusted

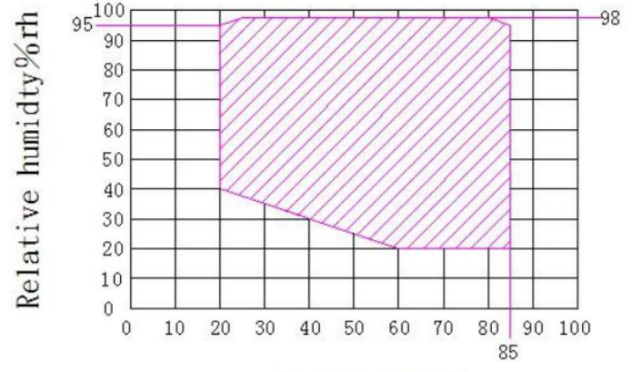

Temperature and Humidity Control Range Programmable Environmental High and Low Temperature Humidity Climatic Test Chamber
Control Stability Temperature ±0.5℃; Humidity ±2%
Distribution Uniformity Temperature ±2.0℃; Humidity ±3.0%
Resolution Temperature: 0.01℃; Humidity: 0.1%R.H
Heating Time Average 3℃/min, non-linear heating
Cooling Time Average 1℃/min, non-linear cooling
Temperature Limit The highest temperature +150℃; the lowest temperature -60℃

Programmable Environmental High and Low Temperature Humidity Climatic Test Chamber
