5KN Computer Servo Tensile Strength Testing Machine For Plastics

Brand Name : ZL

Model Number : ZL-8002

Certification : CE,ISO

Place of Origin : Guangdong, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 15 days after receiving the deposite

Packaging Details : 5KN Tensile Bending Compression Computer Servo Testing Machine is packaged within wooden case.

Power : Electronic

Usage : Strength Testing Machine

Max load : 100-5000kg

tester resolution : Max load 1/200000

Effective tensile stroke : 800mm

Effective testing : 400mm

Testing speed : From 0.001 to 500mm/min

Machine size : 1200* 530* 1800mm

Inside space : 200 *300 *500mm

weight : 300KG

Contact Now

\n
\n
5KN Computer Servo Tensile Strength Testing Machine For Plastics
\n
\n
Product Overview
\n

The ZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine is designed with an aluminum alloy main frame, offering compact size, wide application range, space efficiency, and elegant appearance. With its rolled base station, it provides exceptional convenience, making it particularly suitable for production line quality control testing.

\n

This series is primarily used for testing non-metallic and metallic materials with test loads less than 5000KG.

\nZL-8002B desktop computer type servo tensile testing machine documentation\n
\n
\n
Main Features
\n

The ZL-8002 testing machine is suitable for various materials including textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic film, composites, electronics, metals, and other industrial products. It performs the following tests:

\n
    \n
  • Tensile testing
    • \n
  • Compression testing
    • \n
  • Bending testing
    • \n
  • Shear testing
    • \n
  • Peel testing (90 degrees and 180 degrees)
    • \n
  • Tearing testing
    • \n
  • Two extensions testing (requires additional extensometer)
    • \n
\n
\n
\n
Compliance Standards
\n

Meets GB/T16491-1996 electronic universal testing machine criteria

\n
\n
\n
Technical Parameters
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
ParameterSpecification
ModelZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine
Max load100, 200, 500, 1000, 2000, 5000kg (optional)
Accurate grade1 grade / 0.5 grade
Effective measuring rangeForce from 0.2% to 100% (1 grade) / from 0.4% to 100% (0.5 grade)
Measuring accuracyTolerance \u00b11% / tolerance \u00b10.5%
Tester resolutionMax load 1/200,000, and constant resolution
Load sensorBasic configuration sensor max load: from four sensors to choose one
Effective tensile stroke800mm (can be widened according to customer requirements)
Effective testing width400mm (can be widened according to customer requirements)
Testing speedFrom 0.001 to 500mm/min
Accuracy of displacement measurementTolerance: \u00b10.5% / tolerance: \u00b10.2%
SafetyElectronic-limit protection
Testing platform moving deviceFast/slow (two speeds to control), can jog
Return BackManual or automatic operation. After testing, moving iron returns to initial position with highest speed
Overload protectionOverload 10%, automatic protection
FixtureA set of tensile fixture
Machine size1200\u00d7530\u00d71800mm (L\u00d7W\u00d7H)
Power systemhigh-performance AC Servo Motor + Driver + high-precision ball screw
Temperature rangeFrom normal temperature to 200 degrees
Temperature displayDigital display
Inside space200\u00d7300\u00d7500mm (W\u00d7L\u00d7H)
Cooling systemCompression from France
Power supply220V 50HZ or according to requirement
Power0.75KW (depending on different force demands, using different motor)
Weight300 KG
UnitsKG, N, LB, TON can be exchanged
\n
\n
\n

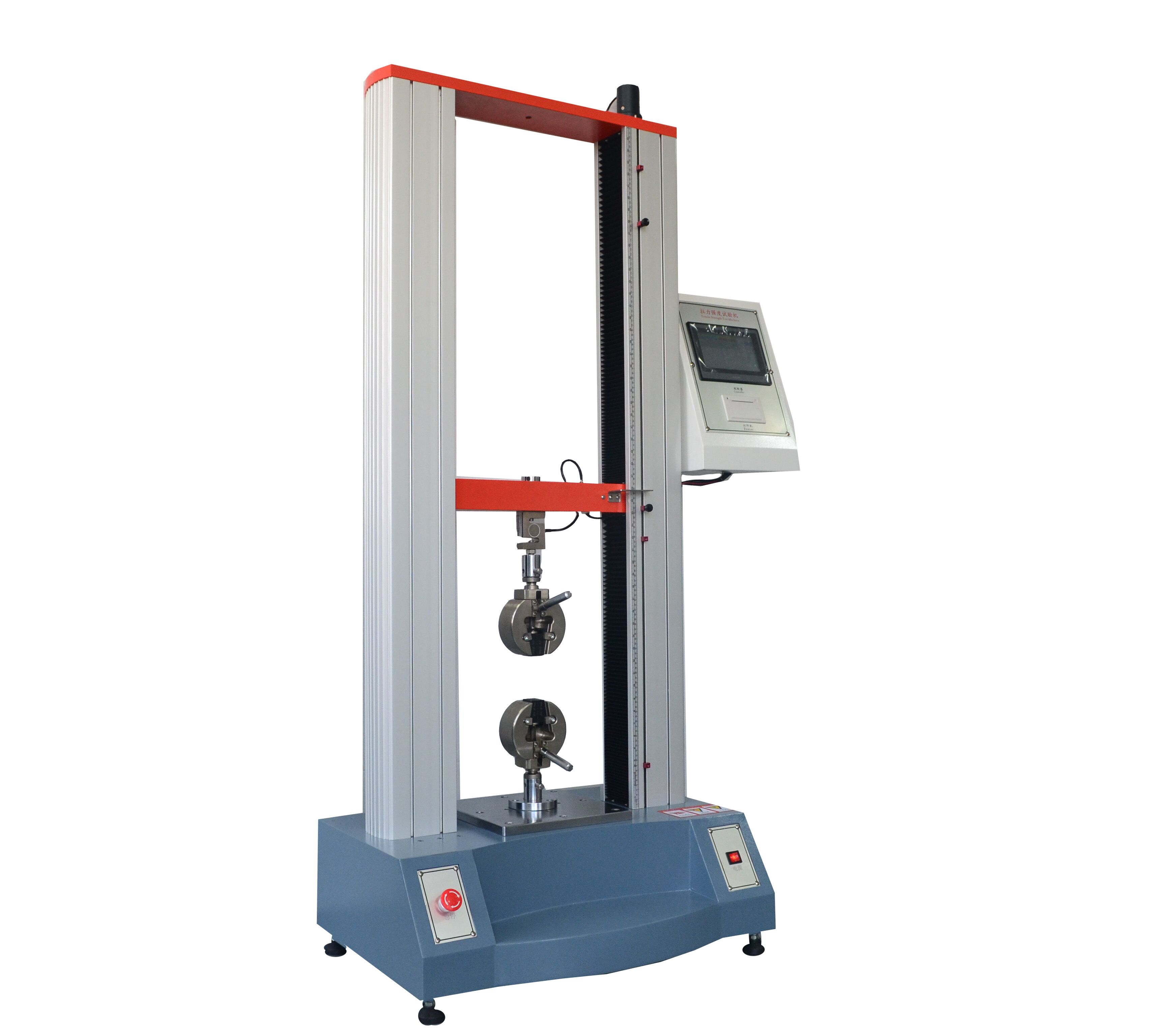

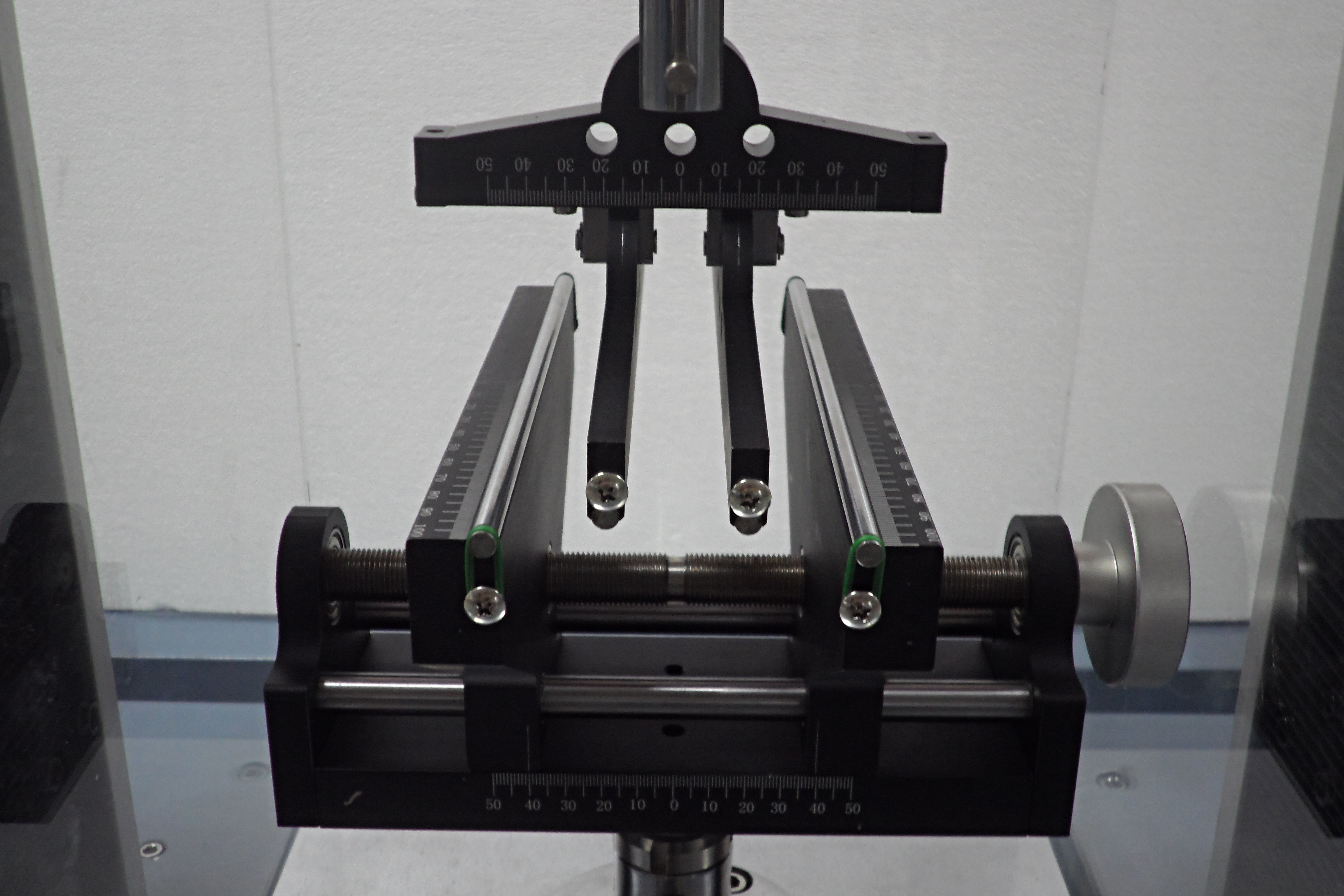

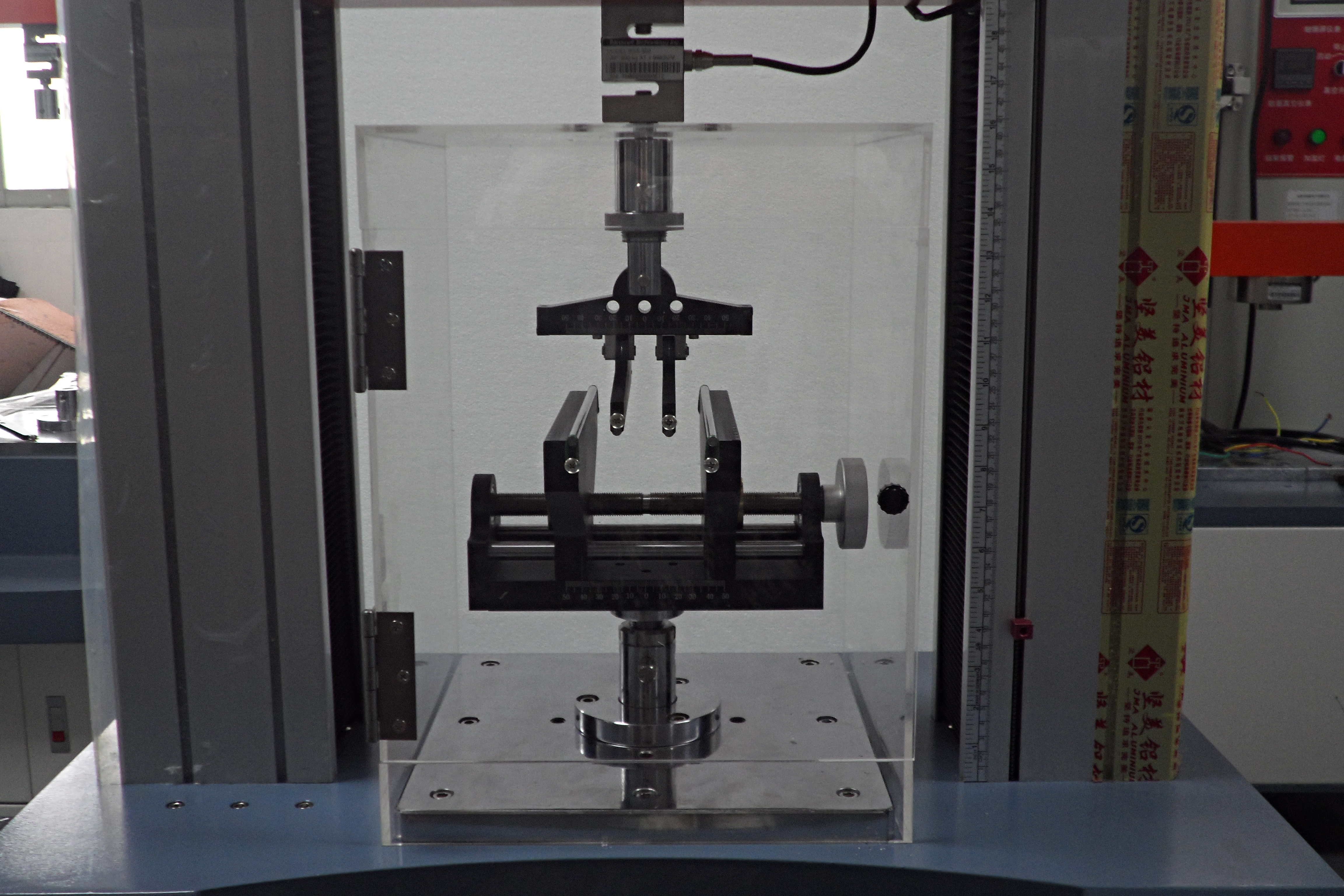

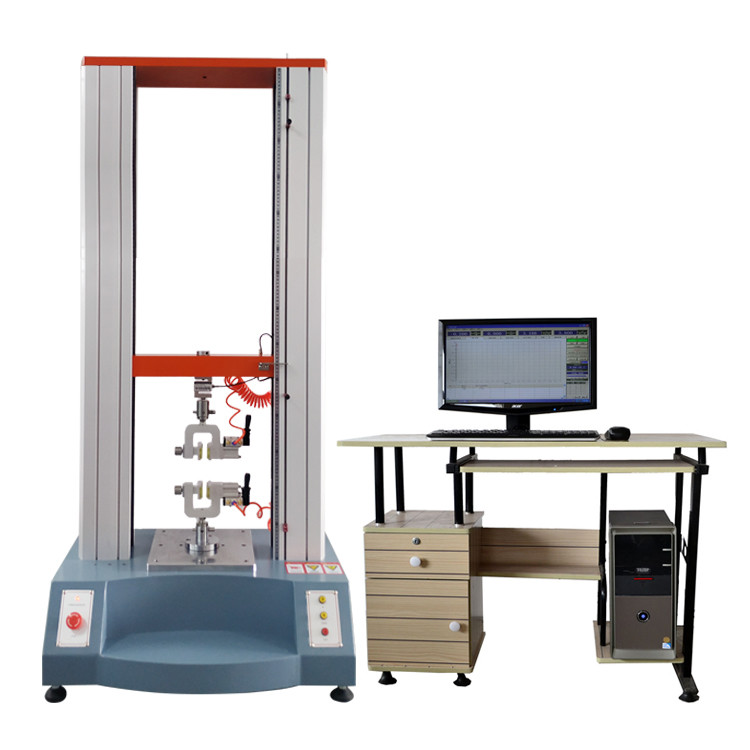

Product Images
\n
\n5KN Computer Servo Tensile Strength Testing Machine For Plastics\n5KN Computer Servo Tensile Strength Testing Machine For Plastics\n5KN Computer Servo Tensile Strength Testing Machine For Plastics\n
