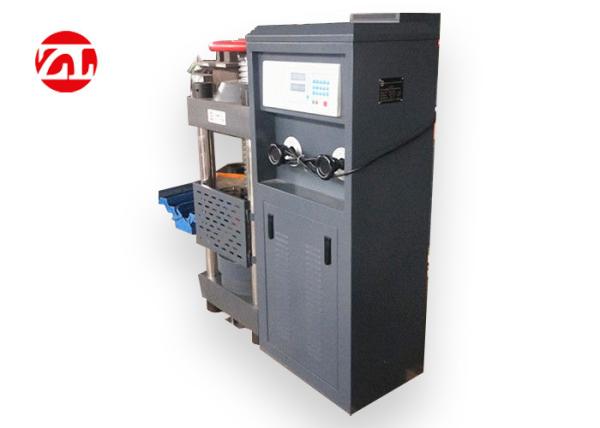

2000kN 3000kN Electro Hydraulic Compressive Test Machine

  • 1
  • 2
  • 3

Product name : 2000kN / 3000kN Electro-hydraulic Pressure Compressive Performance Test Machine

Test force measuring range : 4%-100%FS

Test Force Resolution : 0.01kN

Piston diameter : φ250mm/Φ290mm

Piston stroke : 50mm

Hydraulic pump rated pressure : 40MPa

Bearing plate size : φ250mm×φ220mm

Key words : 2000kN / 3000kN Electro-hydraulic Pressure Compressive Performance Test Machine

Brand Name : ZL

Model Number : ZL-8015

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : 2000kN / 3000kN Electro-hydraulic Pressure Compressive Performance Test Machine is packaged within wooden case.

Contact Now

2000kN 3000kN Electro Hydraulic Compressive Test Machine
Product Overview

The 2000kN / 3000kN Electro-hydraulic Pressure Compressive Performance Test Machine is primarily used for testing the compressive strength of building materials including brick, stone, cement, and concrete, as well as evaluating the compressive performance of various other materials.

Spatial Adjustment

Space adjustment for compression testing is achieved through manual hand wheel rotation.

Hydraulic System

The hydraulic system operates through a filter screen that draws oil into the pump from the tank. Oil is transported via pipeline to the oil valve. When the hand wheel is turned to release oil, pressure pushes the piston while oil returns to the tank through the return pipe. When the hand wheel opens to receive oil, working fluid enters the tank through tubing, with pressure tubing and oil return valve completing the cycle.

Control System

This machine utilizes hydraulic loading with electronic force measurement, featuring digital load display, loading rate indication, maximum load maintenance, overload protection, and power data retention capabilities.

Safety Protection

When test force exceeds 3% of maximum test force capacity, overload protection activates and automatically shuts down the oil pump motor.

Fixture Configuration

Complete fixture set includes one compression platen fixture.

Technical Specifications
Parameter 2000kN Manual 2000kN Power 3000kN Power
Maximum Load 2000kN 2000kN 3000kN
Test Force Measuring Range 4%-100% FS
Test Force Display Error ≤ ±1% of indicating value ≤ ±1% of indicating value < ±1% of indicating value
Adjustment Method Manual Operation Power-driven Power-driven
Test Force Resolution 0.01kN 0.01kN 0.01kN
Piston Diameter φ250mm φ250mm Φ290mm
Piston Stroke 50mm 50mm 50mm
Hydraulic Pump Rated Pressure 40MPa
Bearing Plate Size 250mm × 220mm φ250mm × φ220mm φ300mm × φ300mm
Product Images

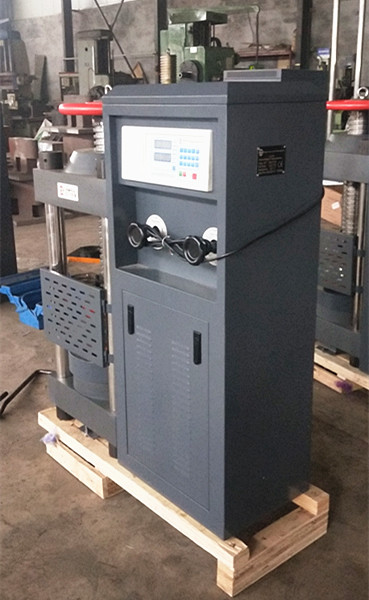

2000kN 3000kN Electro Hydraulic Compressive Test Machine
2000kN 3000kN Electro Hydraulic Compressive Test Machine
